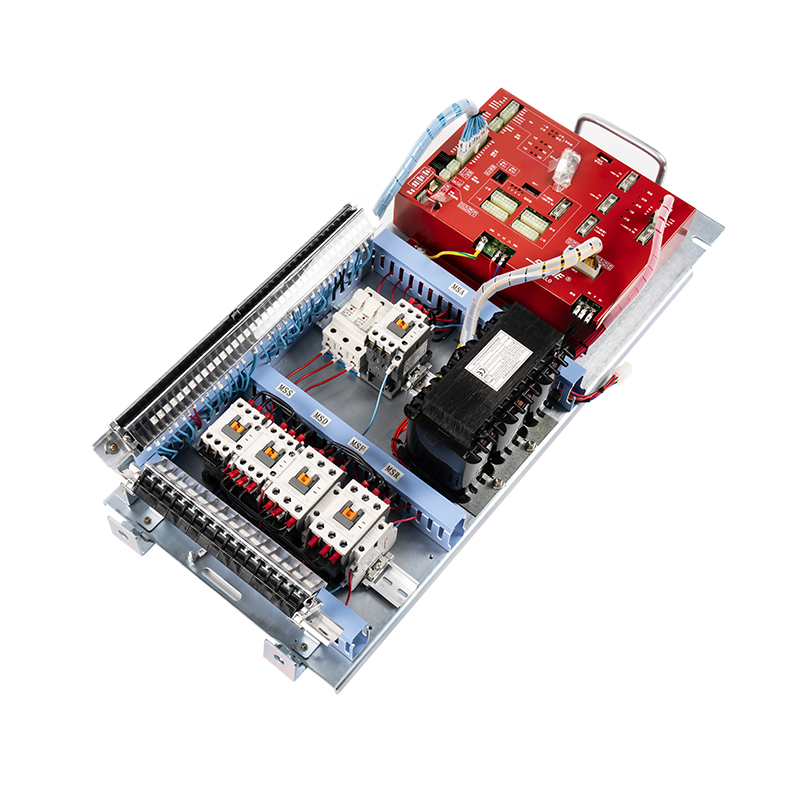

SHL 3in1 System

Explore the SHL 3in1 system: the innovation of textile machinery technology:
The SHL 3in1 system integrates core components such as loom, weft feeder, electronic weft release unit (ELO), electronic weft collection unit (ETU), clamp, water valve, sensor, human-machine interface (HMI), etc. It can not only weave up to 4 colors at the same time, but also excels in real-time variable weft density, real-time variable speed, pressing motion, double reed control, double pump two/three/four nozzles, multi-color selection and automatic reset.
The SHL 3in1 system aims to significantly improve the efficiency and performance of modern textile production through a number of key functions. Its ability to adjust the weft density in real time allows textile manufacturers to have great flexibility in fabric design and production. Combined with real-time variable speed adjustment, the system ensures optimal production efficiency without compromising quality. The introduction of the pressing motion function further enhances the versatility of the system, enabling the creation of complex fabric textures and designs to meet the diverse needs of the market.
One of the core advantages of the SHL 3in1 system is its precise control of the double reed, which is essential for maintaining the accuracy of fabric tension and ensuring high-quality weaving results. The system supports the configuration of double pumps, two, three or four nozzles, making it easy to achieve complex fabric patterns and designs. The multi-color selection function enhances the functionality of the system, allowing complex color patterns and designs to be created in the fabric.
Sanhe's SHL 3in1 system has received important recognition in the industry. It has won the recognition of the National Innovation Fund, highlighting its pioneering contribution in the field of textile technology. In addition, it has also won the Provincial New Product Award and the Provincial Science and Technology Progress Award, proving its important role in promoting textile manufacturing technology standards.

How does the SHL 3in1 System achieve real-time variable weft density in the weaving process?
As an innovation of Sanhe Company in the field of textile machinery, the SHL 3in1 system has become the focus of the industry with its powerful functions and advanced technology. Among them, its ability to achieve real-time variable weft density has greatly improved the flexibility and efficiency of textile production.
In the traditional weaving process, the weft density has an important impact on the quality and characteristics of the final fabric. The adjustment of weft density involves the density and spacing of the weft yarn, which directly affects the thickness, feel and appearance of the fabric. The SHL 3in1 system makes the adjustment of weft density more flexible and accurate through its advanced control technology and precise mechanical design.
The SHL 3in1 system is equipped with advanced sensors and real-time monitoring systems, which can continuously monitor the supply and tension of the weft yarn. These data are analyzed by the system's intelligent algorithm, so that the weft density can be adjusted in real time during the weaving process. Whether it is a change in the design requirements of the fabric or a fluctuation in the weft tension in the production environment, the SHL 3in1 system can respond quickly to maintain the stability and consistency of the fabric.
Traditional weft density adjustment often requires shutdown and manual adjustment, which not only increases the time cost in the production process, but also limits the flexibility of production. The real-time variable weft density function of the SHL 3in1 system can adjust the weft density in real time according to production needs without stopping the machine. This flexibility not only improves production efficiency, but also can quickly respond to changes in market demand, providing strong support for enterprises to maintain their competitive advantage in the highly competitive market.
The key to the SHL 3in1 system's ability to achieve such precise and efficient weft density adjustment is its integration of advanced electronic control and mechanical engineering technologies. The electronic weft letting-off (ELO) and electronic weft taking-up (ETU) in the system, as well as the precision weft yarn feeder and intelligent control software, work together to achieve highly accurate weft density adjustment. The combination of these technologies not only makes the SHL 3in1 system an indispensable tool in modern textile production, but also sets a new benchmark for technological progress in the textile industry.
